Facemask to Filament: 3D Printing with Recycled Facemasks

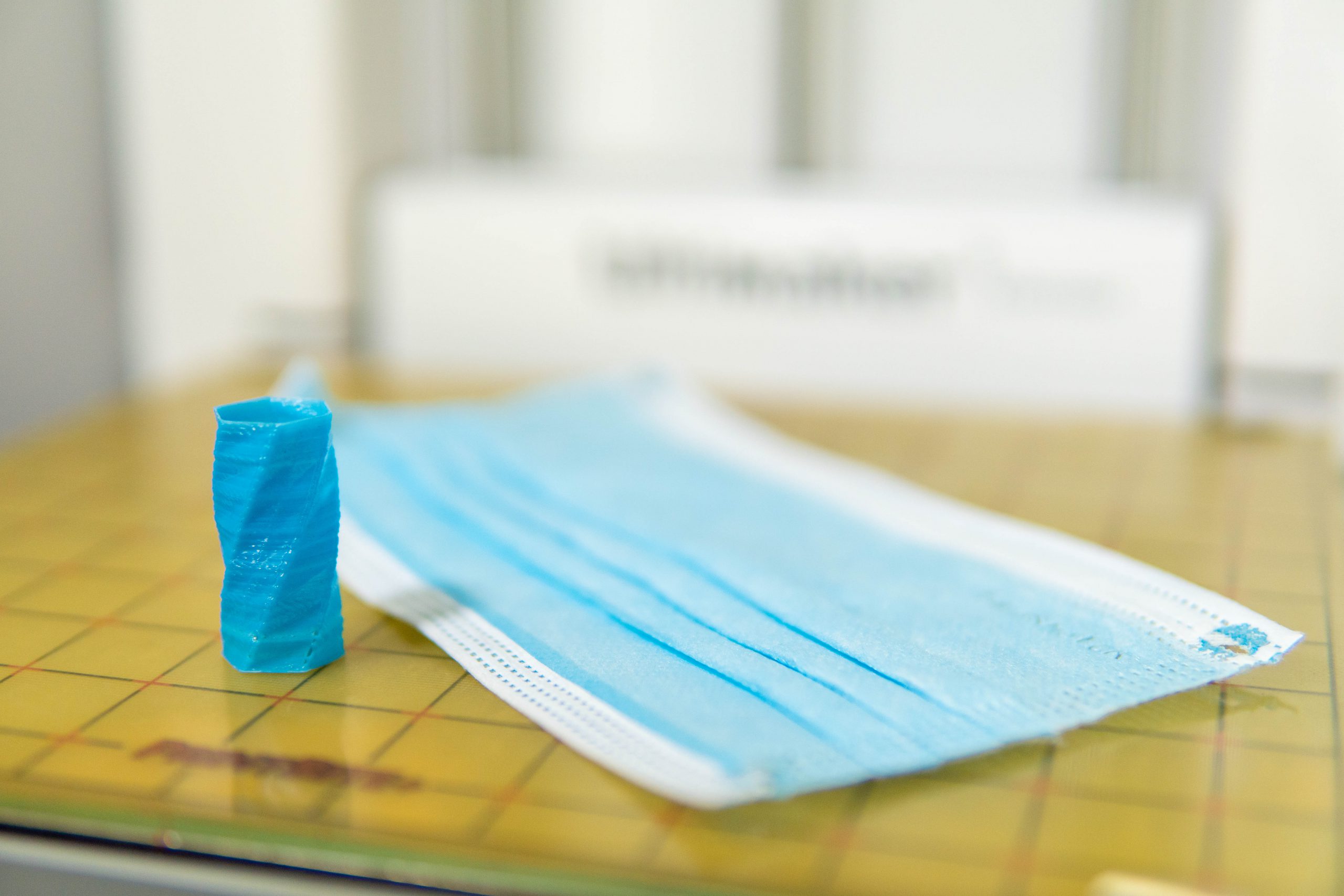

Photography courtesy of Peter Rosso

As a first line of defence against the spread of COVID-19 the facemask, a simple covering worn to reduce the spread of infectious agents, has affected the lives of billions across the globe. An estimated 129 billion facemasks are used every month, of which, most are designed for single use. Naturally, this presents a challenge of immense scale to mitigate the impact of disused Personal Protective Equipment (PPE) on our environment.

Our lab here at the University of Bristol predominantly focuses on issues concerning Rapid Prototyping. We’ve been involved in numerous ‘hack the pandemic’ type projects since the outbreak of COVID-19, sharing our knowledge of Rapid Prototyping with the maker community at large. As such, our works under the title of Project Clean Access (PCA), a DMF lab initiative funded by the Royal Academy of Engineering, have previously contributed designs for low-cost, physical interventions to reduce the transmission of COVID-19.

However, as restrictions are slowly lifted and a sense of normality returns to many campuses across the UK, it’s evident that we’re now facing an altogether different problem; the pervasiveness of PPE litter in our local environment.

Can we turn the waste from PPE into something useful for society?

Over the years we’ve looked extensively at 3D printing technologies, methods, and materials and after realising that the common blue facemask is not ‘some sort of paper’ but usually a polymer based product with a high percentage of Polypropylene (PP), we started to ponder the possibility of turning it into something we could 3D print with on a desktop printer.

This raised an interesting question for us: Can we turn the waste from PPE into something useful for society, by turning disposable facemasks into a filament for 3D printing?

PPE pollutants are a global issue. This one was photographed in Bristol, UK

The following sections of this post document the various stages and findings of interest in going from facemask to filament.

  1. The Procurement of Facemasks
  2. The Equipment
  3. Processing
  4. Extruding the  Filament
  5. Printing with Facemasks
  6. Results and Discussion
  7. Acknowledgements
0
Number of facemasks or facesheilds discarded daily according to recent study

1: The Procurement of Facemasks

We got in touch with Hardshell UK a leading manufacturer of PPE based in Cardiff who were keen to get involved and very generously supplied 1kg of type IIR Polypropylene facemasks free of charge! The masks (pictured below) are certified surgical products and compliant to EN14683:2019 Type IIR standards.

A box of type IIR surgical facemasks

 MASK SPECIFICATIONS

  • Mask length: 175mm
  • Mask width (before pleat): 175mm
  • Mask width (after pleat): 95mm
  • Nose wire length: 100mm
  • Ear loop length (one side): 180mm

 FEATURES

  • Integrated and adjustable 3mm Single core PP nose wire with 0.5mm steel core
  • Ultrasonic welded 3mm non-woven fibre ear loop (latex free)
  • Three ply structure:
    • 1 st layer: PP Spunbond 25 gsm (Blue)
    • 2 nd layer: PP Meltblown 25 gsm
    • 3 rd layer: PP Spunbond 25 gsm (White)

The masks used in this work were manufacturing defects and not suitable for sale. The most common issues being failed ear loop welds, and the occasional missing nose wire.

2: The Equipment

After researching methods to produce a filament we found frequent mention of the Filastruder kit, an open-source product designed for the maker community to recycle printed plastic waste into a filament for 3D printing. The machine offers a simple, yet functional design with scope to modify parts as necessary. The kit also boasts a large online community of users that share set-ups, part designs, and experience with extruding a range of both conventional and more exotic polymers/polymer blends.

SPECIFICATIONS

  • Motor GF45: 12vDC, 8RPM, 15.6 N-m torque, 1.6A
  • Typical Extrusion Rate: 5-8 hours per kg (2.2lbs) (10-36in/min, depending on diameter, material, and temperature)
  • Extrusion Temperature: Room temperature to 260C.
  • Power: 110-240VAC, 50/60Hz, 60 watts peak, 50 watts average (electrical cost: ~£0.07 per kg extruded)

The image above shows the barebones assembly of the Filastruder kit before adding the controller and wiring. We additionally purchased the complimentary ‘Filawinder’ kit, a device to help spooling the filament and increase the diametral consistency of extruded material. In total both devices cost ~£345 plus shipping from the United States.

A video of the assembled kit is shown in section 4.

3: Processing

We realised through early experimentation that the fibrous composition of masks posed a challenge to any conventional methods of plastic recycling. Other researchers also identify this as the cause of many a ‘clogged machine’. To overcome this issue we introduce a step prior to grinding where the masks are heated and pressed to form a hard sheet; the idea being that by taking the material to its glass transition point we can fuse the Polypropylene fibers to create something with more rigidity. To do this we simply used an iron and non-stick paper.

The rigid sheets were then broken up into smaller bits to process through a blender (300W Breville Blend Active) achieving the fine granules of facemask blue PP pictured on the right. For comparison, the sample ABS material supplied by Filastruder is also shown. This process of increasing rigidity improves results from extrusion by reducing pressure instability in the barrel of the filament extruder, and further, prevents fibers from jamming the machine. The blue granules are what we feed into the extruder to produce filament.

To address concerns around any contamination of the material produced it should be noted that the masks are heated throughout the process of extrusion to a temperature far beyond that which SARS-CoV-2 has been shown to survive. Another issue to consider is the pre-processing of masks i.e. removing ear loops and metal nose straps. These are fairly easy to remove manually, although could present difficulties in automating the sorting/preparation process. It might be that in the future users are prompted to separate these parts before recycling.

4: Extruding the Filament

As promised in section 2, this video shows our most recent set-up of the filament extrusion kit in action. We opt for vertically mounting the Filastruder and print a vertical hopper to work with this arrangement.

Extrusion Settings

  • Nozzle temp: 170 C
  • Voltage: 11V (turned down to reduce speed)
  • Amps: 1.6 (current limited)
  • Cooling: On
  • Nozzle hole diameter: 1.75mm
  • Filawinder: Automatic speed

This set up produced good results however there are still issues with achieving a consistent filament diameter.

Nevertheless, 7 meters of ‘useable‘ filament was spooled with an average diameter of 1.5 mm (-0.25 mm below the standard of 1.75 mm). Initial results indicate that with further refinement it will be possible to achieve the desired diameter within a reasonable tolerance. At the time of writing this post, the standard nozzle has already been drilled from 1.75 mm to 1.9 mm, and parts for a motor driven vertical feed are being 3D printed. Improving these aspects of the system should get us closer to the ideal 1.75 mm filament diameter.

We use this first batch of filament to run some early stage tests with a Fused Filament Fabrication (FFF) desktop 3D printer.

5: Printing with Facemasks

Polypropylene (PP) is notoriously difficult to 3D print as it doesn’t bond well to common printer build platforms. However, it does bond well to itself, PP. A trick is therefore to print on normal clear tape as this is often also PP. Using this method it was surprisingly straightforward to 3D print with our rudimentary stock of filament on a low-cost, run-of-the-mill machine. It’s very evident that issues currently reside in producing the filament and not in 3D printing with it.

Print Settings

  • Printer: Creality Ender 3 Max
  • Nozzle temp: 235 C
  • Bed temp: 100 C
  • Print speed: 40 mm/s (slow)
  • Fan speed: 100%
  • Retraction: 4mm (Bowden)
  • Retraction speed: 30 mm/s
  • Flowrate: 350% (account for thinner filament)

We find these settings to have worked well considering the inconsistency in diameter of filament.

Whilst not very widely used as a material in 3D printing, some properties of PP make it an alternative worth exploring. These include the materials durability, and resistance to chemicals and fatigue. Polypropylene is also both food and microwave safe.

In addition to the points above, PP is one of the most common polymers in use. From an environmental standpoint the use of recycled Polypropylene, and polymers in general, poses an opportunity to reduce the consumption of virgin material in rapid prototyping processes such as 3D printing and Injection Moulding.

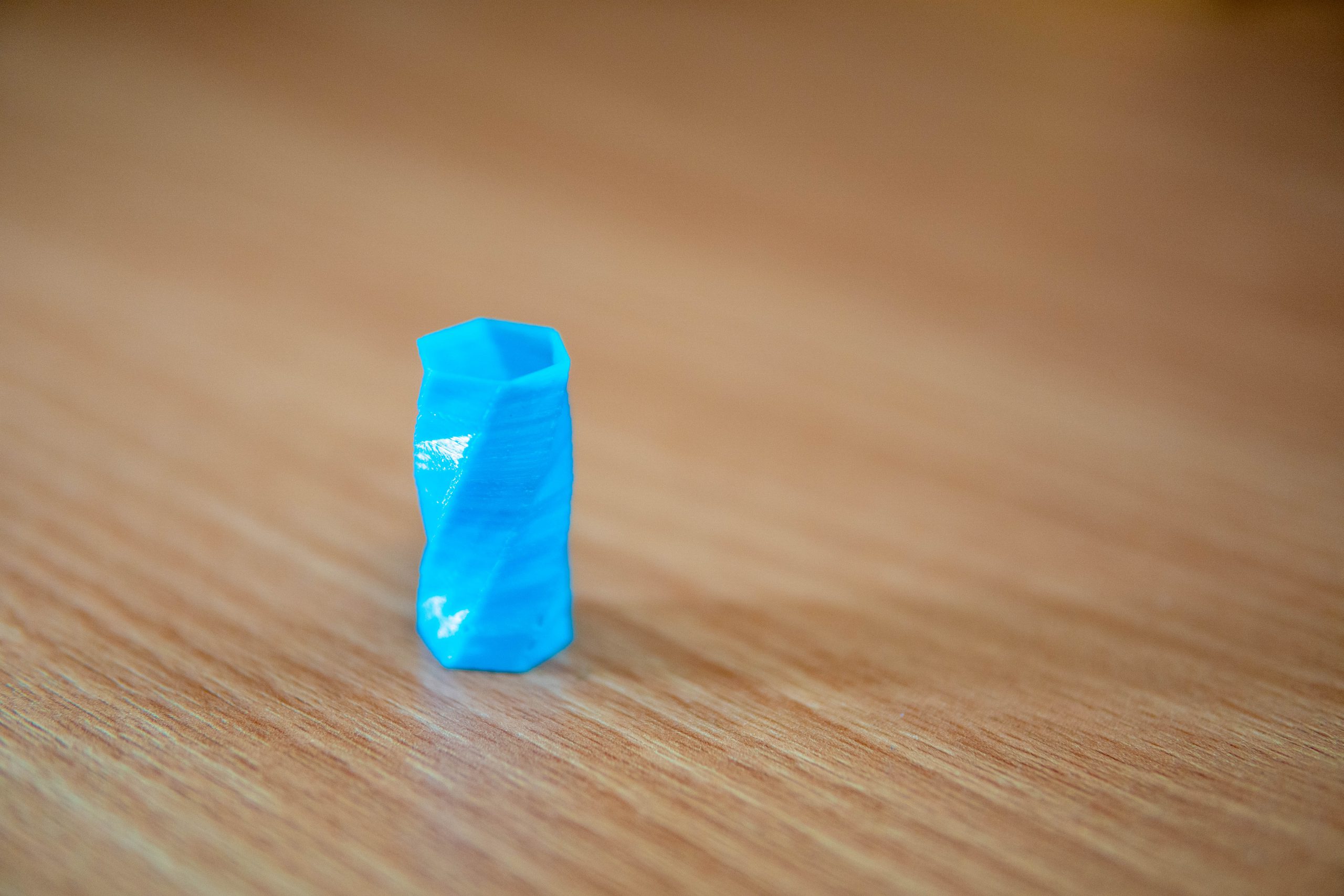

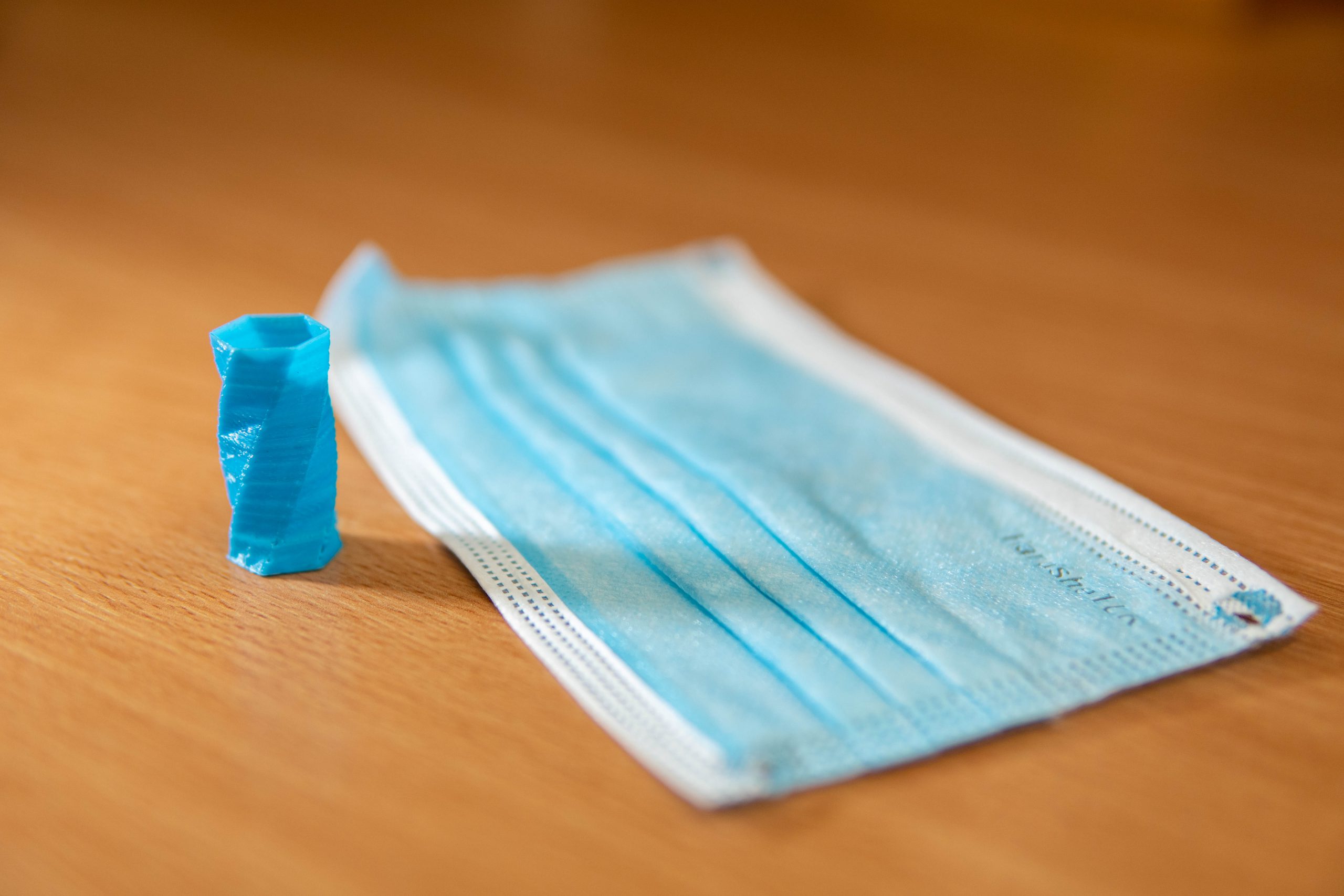

Roughly a third of a facemask was used to 3D Print this part

6: Results and Discussion

Whilst further work is required to improve on the tolerances of our extruded filament, the printed part doesn’t actually look too bad… which is somewhat surprising, given that it’s entirely 3D printed with disposable facemasks.

Of course, these are fairly idealised conditions, our masks are 100% Polypropylene and have never been worn. We therefore position this work as a step towards better understanding the challenges in recycling this type of PPE, and inspire others to also take interest in this issue.

The areas we identify for future work include:

  • Would this process be feasible on a larger scale?
  • Processing mixed materials i.e. could a range of similar type masks all be put through the same machine, and would this produce anything useful?
  • Could the fibrous nature of these masks be exploited for use in composites?
  • What are the best practices for collecting PPE waste for recycling?
  • Could institutions (such as universities) create their own PPE circular economy? Overseeing the distribution, collection, and recycling of PPE.

Acknowledgements

Royal Academy of Engineering for funding this research under the Project Clean Access (PCA) grant, my supervisors for supporting yet another brief distraction from my PhD research, Helen at Hardshell UK for supplying the masks and some general pointers, the team at Filastruder, Tom Barnes in the DML lab for helping to get this work signed off and up to health & safety regulation, Peter Rosso for the photos, and finally my DMF lab colleagues.
